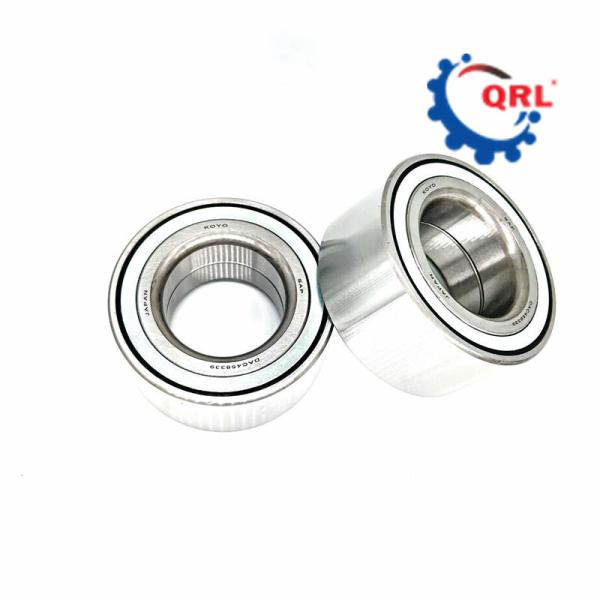

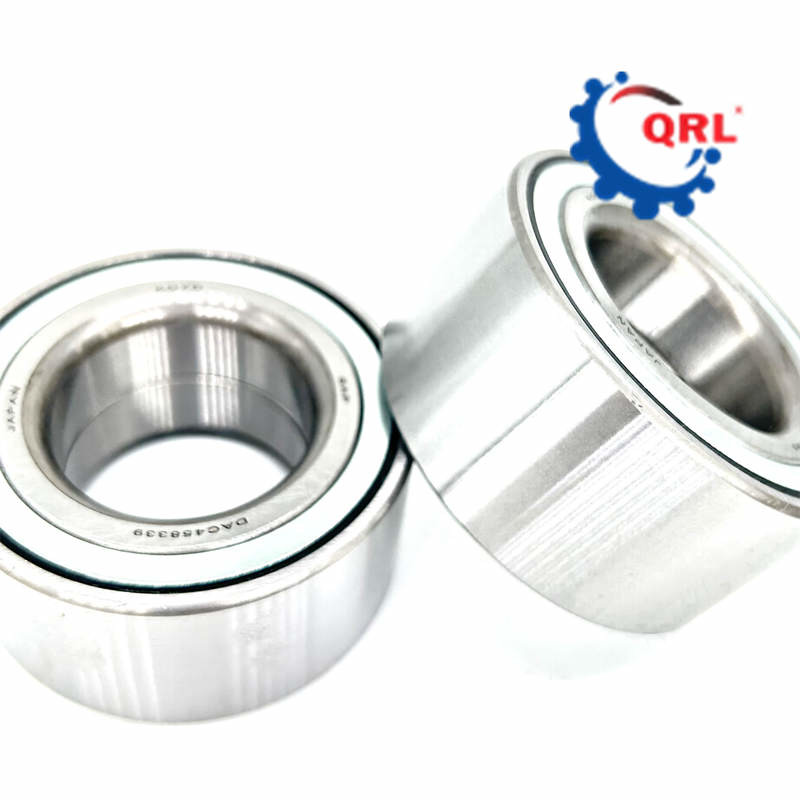

45x83x39 LAGUNA FRONT WHEEL BEARING WITH DAC458339
wheel hub bearing Specification
Dimensions d x D x W (mm): 45x83x39
Application:
Front Wheel, both sides, with ABS
RENAULT Laguna II from 2001 to 2007
RENAULT Laguna II Grandtour from 2001 to 2007
Engines: 1.6L 16V, 1.8L 16V, 2.0L 16V, 2.0T, 3.0L 24V
Equivalences/Exchanges:
wheel hub bearing Description
The main function of the hub bearing is to bear the load and provide precise guidance for the rotation of the hub. It bears both the axial load and the radial load, and is a very important component. The traditional automobile wheel bearing is composed of two sets of tapered roller bearings or ball bearings. The installation, oiling, sealing and clearance adjustment of the bearings are all carried out on the automobile production line. This structure makes it difficult to assemble in an automobile production plant, with high cost and poor reliability, and the bearings need to be cleaned, oiled and adjusted when the automobile is maintained at the maintenance point. The wheel hub bearing unit is developed on the basis of standard angular contact ball bearing and tapered roller bearing. It integrates two sets of bearings, which has good assembly performance, can omit clearance adjustment, light weight, compact structure and load capacity. The advantages of large, sealed bearings can be pre-loaded with grease, omission of external hub seals, and maintenance-free.
wheel hub bearing Number
40 mm x 74 mm x 42 mm KOYO DAC4074W-3CS80Bearing : |
| No. | Brand | d | D | B | C | T | Size | Width | Weight |
| PW40740036/34CS | QRL | 40 mm | 74 mm | 36 mm | 34 mm | - | 40x74x36 | 36 | - |
| PW40740036CS | QRL | 40 mm | 74 mm | 36 mm | 36 mm | - | 40x74x36 | 36 | - |
| PW40740040CS | QRL | 40 mm | 74 mm | 40 mm | 40 mm | - | 40x74x40 | 40 | - |
| PW40740042CS | QRL | 40 mm | 74 mm | 42 mm | 42 mm | - | 40x74x42 | 42 | - |
| HI-CAP ST4074LFT | KOYO | 40 mm | 74 mm | 15 mm | - | 20 mm | 40x74x20 | 20 | - |
| DAC40740036/34 | QRL | 40 mm | 74 mm | 36 mm | 34 mm | - | 40x74x36 | 36 | - |
| DAC40740040 | QRL | 40 mm | 74 mm | 40 mm | 40 mm | - | 40x74x40 | 40 | - |
| DAC40740042 | QRL | 40 mm | 74 mm | 42 mm | 42 mm | - | 40x74x42 | 42 | - |
| DAC4074036/34 | | 40 mm | 74 mm | 36 mm | 36 mm | - | 40x74x36 | 36 | - |
| DAC4074CWCS73 | KOYO | 40 mm | 74 mm | 36 mm | - | - | 40x74x36 | 36 | - |
wheel hub bearing Delivery
1. Best bearing steel for the components of the wheel bearing
2. High quality grease used or as per customer request
3. Good finishing surface and integrated raceway
4. Long term quality guarantee & fast response to any claims
5. Competitive price, low MOQ and small order accepted
