GE 45 ES-2RS Radial Spherical Plain Bearings 45x68x32 Mm

Product Categories
Guangzhou Zhonglu Automobile Bearing Co., LTD
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

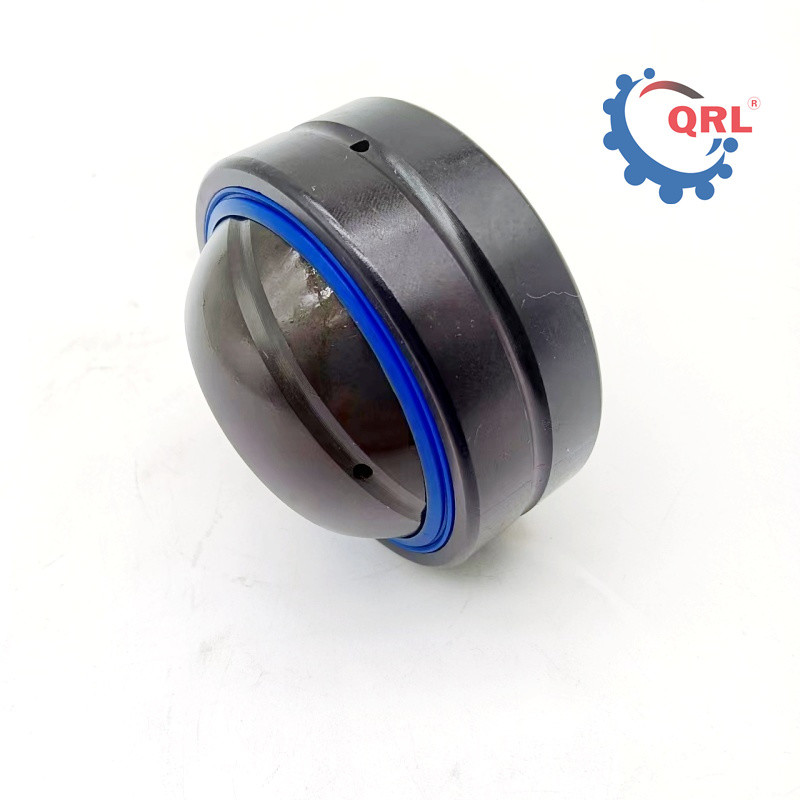

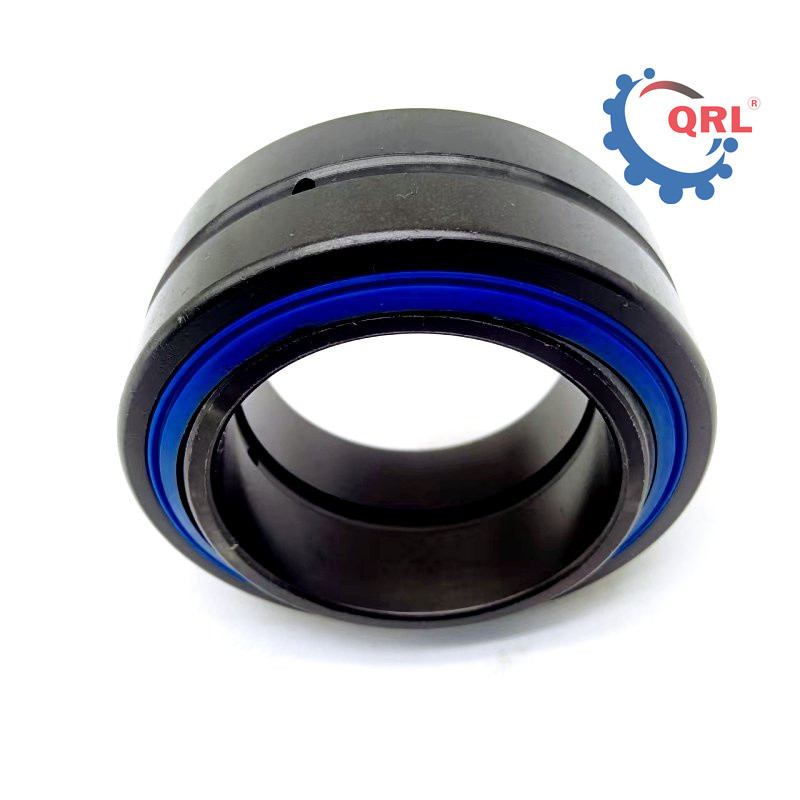

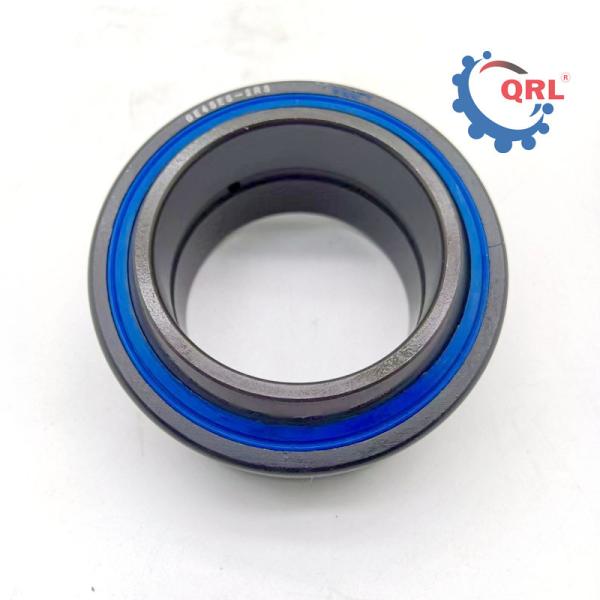

GE 45 ES-2RS Radial Spherical Plain Bearings 45x68x32 Mm

  • 1
  • 2

Brand Name : QRL

Model Number : GE 45 ES-2RS

Certification : ISO9001/2000

Place of Origin : CHINA

MOQ : 20

Payment Terms : L/C, D/A, D/P, T/T, Western Union

Supply Ability : 5000pcs

Delivery Time : 1-15days

Packaging Details : Carton/woven bag

Type : Spherical Plain Bearing

Universal number : GE25ES

Oe no. : GE 45 ES-2RS

Product name : For Automotive

Size : 45x68x32 mm

Precision Rating : P4 P5 P6 P2

Weight : 0.31 kg/pcs

Contact Now

GE 45 ES-2RS Radial spherical plain bearings 45x68x32 mm


Spherical Plain Bearing Specification

Part Number GE 45 ES
System of Measurement Metric
Bearing Type Plain Bearing
Plain Bearing Type Radial
For Load Direction Combined Radial and Thrust
Inner Ring Shape Groove
Outer Ring Shape Groove
Seal Type Open
Bore Dia 45 mm
Bore Dia Tolerance -0.012mm to 0
Outer Dia 68 mm
Outer Dia Tolerance -0.013mm to 0
Nominal Width 32 mm
Nominal Width Tolerance -0.12mm to 0
Width Outer Ring 25 mm
Width Outer Ring Tolerance -0.3mm to 0
Angle Of Tilt 7°
Raceway Diameter Inner Ring 60 mm

Spherical Plain Bearing Description

The Spherical Bearing is a heavy-duty self-aligning sliding bearing. Highly resistant to impact loads, this product is most fitted to the oscillating section under slow, heavy loads.

Spherical Plain Bearing Number

Bearing Type Dimensions/mm α/(°)≈
GE…E型 GE…ES GE…DS GE…C GE…ES-2RS d D B C d1≈ dk① rsmin r1smin Other GE…ES-2RS型
GE4E － － GE4C － 4 12 5 3 6 8 0.3 0.3 16 －
GE5E － GE5DS GE5C － 5 14 6 4 8 10 0.3 0.3 13 －
GE6E － GE6DS GE6C － 6 14 6 4 8 10 0.3 0.3 13 －
GE8E － GESDS GE8C － 8 16 8 5 10 13 0.3 0.3 15 －
GE10E － GE10DS GE10C － 10 19 9 6 13 16 0.3 0.3 12 －
GE12E － GE12DS GE12C － 12 22 10 7 15 18 0.3 0.3 10 －
－ GE15ES GE15DS GE15C GE15ES-2RS 15 26 12 9 18 22 0.3 0.3 8 5
－ GE17ES GE17DS GE17C GE17ES-2RS 17 30 14 10 20 25 0.3 0.3 10 7
－ GE20ES GE20DS GE20C GE20ES-2RS 20 35 16 12 24 29 0.3 0.3 9 6
－ GE25ES GE25DS GE25C GE25ES-2RS 25 42 20 16 29 35 0.6 0.6 7 4
－ GE30ES GE30DS GE30C GE30ES-2RS 30 47 22 18 34 40 0.6 0.6 6 4
－ GE35ES GE35DS － GE35ES-2RS 35 55 25 20 39 47 0.6 1 6 4
－ GE40ES GE40DS － GE40ES-2RS 40 62 28 22 45 53 0.6 1 7 4
－ GE45ES GE45DS － GE45ES-2RS 45 68 32 25 50 60 0.6 1 7 4
－ GE50ES GE50DS － GE50ES-2RS 50 75 35 28 55 66 0.6 1 6 4
－ GE55ES GE55DS － GE55ES-2RS 55 85 40 32 62 74 0.6 1 7 －
－ GE60ES GE60DS － GE60ES-2RS 60 90 44 36 66 80 1 1 6 3
－ GE70ES GE70DS － GE70ES-2RS 70 105 49 40 77 92 1 1 6 4
－ GE80ES GE80DS － GE80ES-2RS 80 120 55 45 88 105 1 1 6 4
－ GE90ES GE90DS － GE90ES-2RS 90 130 60 50 98 115 1 1 5 3
－ GE100ES GE100DS － GE100ES-2RS 100 150 70 55 109 130 1 1 7 5
－ GE110ES GE110DS － GE110ES-2RS 110 160 70 55 120 140 1 1 6 4
－ GE120ES GE120DS － GE120ES-2RS 120 180 85 70 130 160 1 1 6 4
－ GE140ES GE140DS － GE140ES-2RS 140 210 90 70 150 180 1 1 7 5
－ GE160ES GE160DS － GE160ES-2RS 160 230 105 80 170 200 1 1 8 6
－ GE180ES GE180DS － GE180ES-2RS 180 260 105 80 192 225 1.1 1.1 6 5
－ GE200ES GE200DS － GE200ES-2RS 200 290 130 100 212 250 1.1 1.1 7 6



Spherical Plain Bearing Delivery

According to different applications, bearings without inner ring or needle roller and cage components can be selected. At this time, the journal surface and shell hole surface matching the bearing are directly used as the inner and outer rolling surfaces of the bearing to ensure the load capacity and running performance Same as the bearing with ring, the hardness, machining accuracy and surface quality of the raceway surface of the shaft or housing hole should be similar to the raceway of the bearing ring. This kind of bearing can only bear radial load.
