TIS 152 1A UNIVERSAL JOINT IS PICKUP 2004-2011 Weight 0.8kg For D-MAX 4X4

Product Categories
Guangzhou Zhonglu Automobile Bearing Co., LTD
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

TIS 152 1A UNIVERSAL JOINT IS PICKUP 2004-2011 Weight 0.8kg For D-MAX 4X4

  • 1
  • 2

Brand Name : QRL

Model Number : TIS 152 1A

Certification : ISO9001

Place of Origin : China

MOQ : 30

Payment Terms : L/C, D/A, D/P, T/T

Supply Ability : 10000pcs

Delivery Time : 15days

Packaging Details : Oem/Neutral

Type : Universal Joint Beairng

Oe no. : TIS 152 1A

Size : 29-53/77

Quality : Standrad

MQQ : 1 PCS

Application : For ISUZU D-MAX 4X4

Weight : 0.8 KG

Contact Now

TIS 152 1A UNIVERSAL JOINT IS PICKUP 2004-2011 , Weight 0.8kg For D-MAX 4X4
Universal Joint Bearing Specification

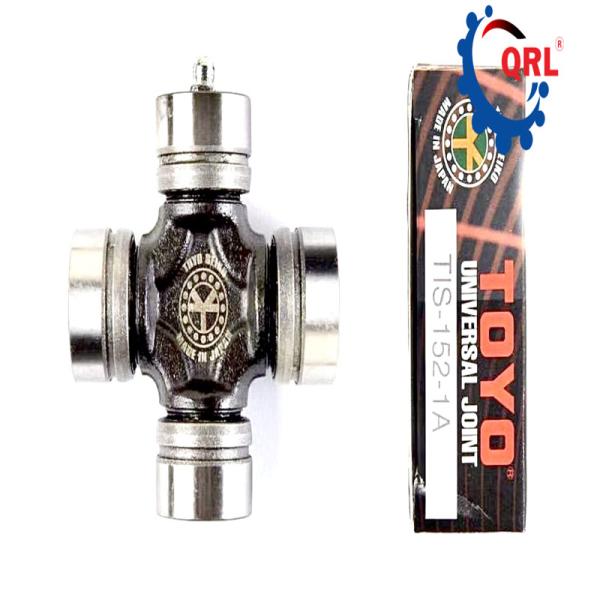

8-97942-846-1 (TIS-152-1A)_TOYO / 29-53/77 / CARDAN / CRUCETA / CHEVROLET D-MAX 4X4 - LUV 4X2 2.3L - LUV 2.0L - D-MAX 2.5L TFS54 - D-MAX 3.0L TFS77H / CRUCETAS / GUIS-52 /
Especificación:
Medidas: 29-53/77

Universal Joint Bearing Description

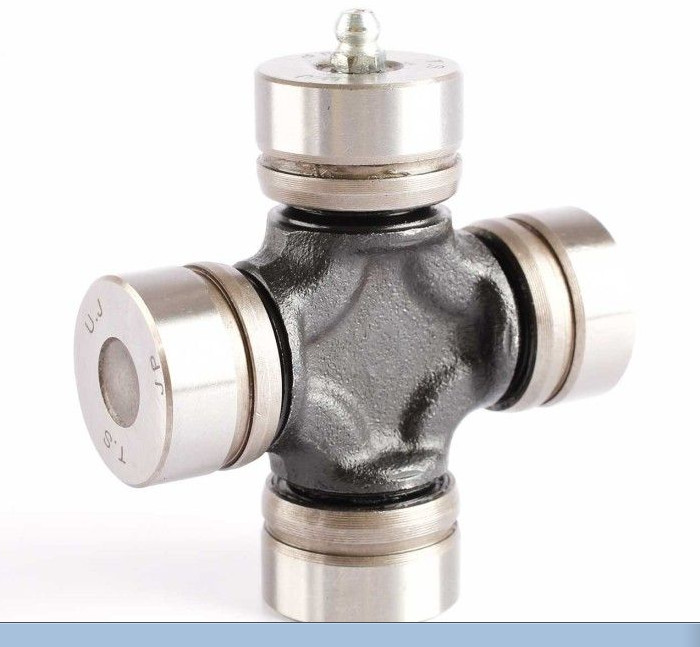

Structure Universal joint consists of spider(cross) and 4 grease-filled roller bearings. It can transmit large torque at low friction. Spider with journal pegs and bearing cases as outer ring were hot forged or cold formed and machined. They are later carburized in furnace so that increased ruggedness and wear resistance are obtained. Parts are finally ground to designed size under severe tolerance. Oil seal as well as dust cover are also in use to protect internal journal area from intrusion of foreign material. Variety of grades and materials are selected to respond to extreme conditions such as very hot / very cold temperatures.
Universal Joint Bearing Product number
ISUZU
Type Part No D mm O mm L mm Spice No Original No KOYO MATSUBA
A GUIS-51 23.82 61.3 9-37300-017 12461 UJ313
B GUIS-52 29 50 9-37300-065 12976 UJ314(324)
IA GUIS-54 36 97 K5-A523 9-37300-055 136101 UJ311
IA GUIS-55 42 125 K5-A574 9-37300-150 142129A UJ320
A GUIS-56 23.82 61.3 9-37300-609 12461 UJ323
IA GUIS-57 48 145 K5-A582 9-37300-163 148149 UJ321
IA GUIS-58 36 97 9-37300-112 136101A UJ312
A GUIS-59 20.5 56.6 44135-060 UJ315
G GUIS-60 49.2 148.38 9-37300-139-0 070004AR-1 UJ339
A GUIS-61 23.82 61.3 9-37300-031 12491 UJ313
A GUIS-62 35 103.92 K5-A567 1-37300-0130 1351041
A GUIS-63 22.06 62.5 K5-A653 94207232-1
A GUIS-64 40 115 K5-A639 1-37300-047-0
IS GUIS-65 45.98 136 K5-A577 1-37300-004-0 146142WS UJ340
A GUIS-66 33 93 K5-A679 5-37300-032-0 133931W UJ325
G GUIS-67 56 173.9 114-8209 1-37300-049-0
IA GUIS-68 50 155 1-37300-082-0
A GUIS-69 27 81.75 8-97020-279-0
B GUIS-70 29 49 8-97080-897-0
B GUIS-71 29 49 RUJ-2033 8-97180-697-0
A GUIS-72 42 115 K5-A753
Universal Joint Bearing Delivery
1) Avoid collision and stacking during disassembly, transportation and storage;
(2) The inertia of the vehicle should not be used to start the engine to avoid impact;
(3) Avoid lifting the clutch pedal sharply, and shift gears smoothly;
(4) When the vehicle is braked as far as possible, the transmission is in neutral or the clutch is in a disengaged state to prevent transmission overload;
TIS 152 1A UNIVERSAL JOINT IS PICKUP 2004-2011 Weight 0.8kg For D-MAX 4X4TIS 152 1A UNIVERSAL JOINT IS PICKUP 2004-2011 Weight 0.8kg For D-MAX 4X4
