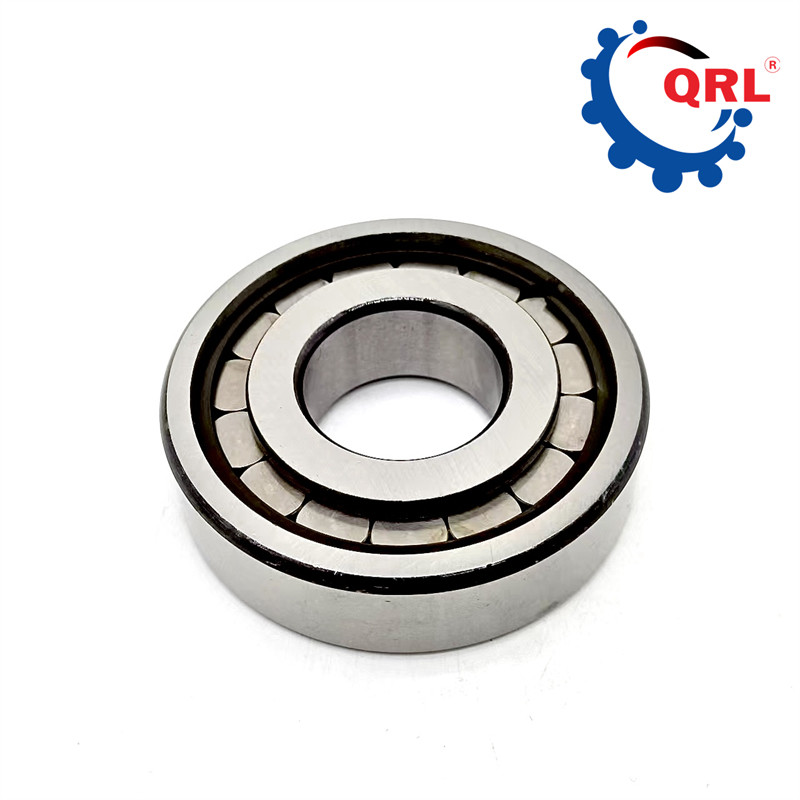

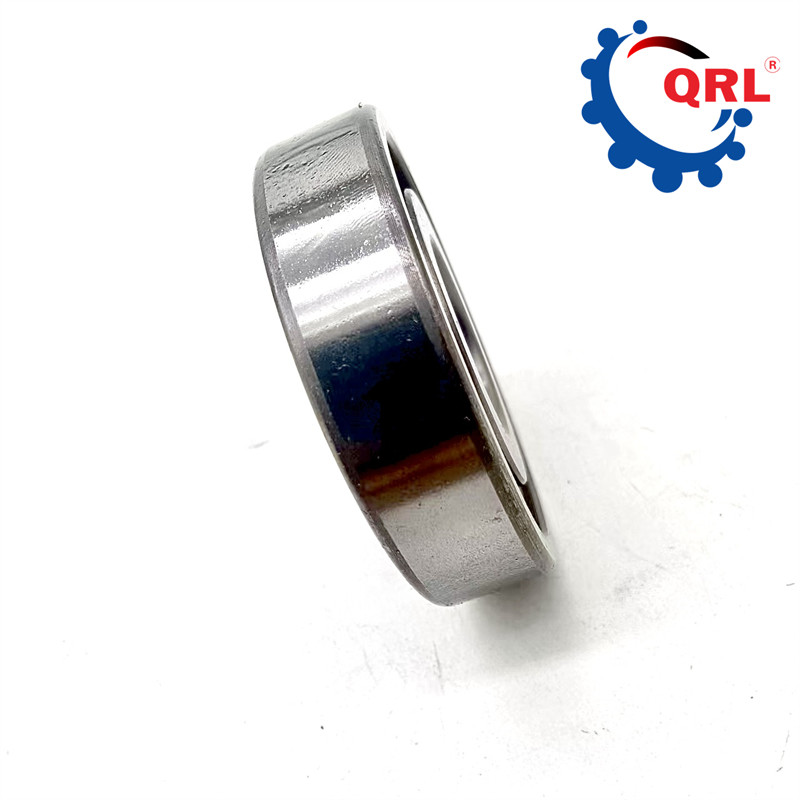

M35-3 Cylindrical Roller Bearing 35X95X27MM Radial cylindrical roller bearings
Cylindrical Roller Bearing Specification
Bearing number : M35-3
Size (mm) : 35x95x27
Brand : NSK
Bore Diameter (mm) : 35
Outer Diameter (mm) : 95
Width (mm) : 27
Cylindrical Roller Bearing Description
The cylindrical roller and raceway are line contact bearings. They have large load capacity and mainly bear radial loads. The friction between the rolling element and the rib of the ferrule is small, which is suitable for high-speed rotation. According to whether the ferrule has ribs or not, they can be divided into single-row cylindrical roller bearings such as NU, NJ, NUP, N, NF, and double-row cylindrical roller bearings such as NNU and NN.
Cylindrical Roller Bearing Product number
| Bearing Number | principal dimensions(mm) | Weight (Kg) |
| d | D | B | r1min | rsmin |
| NU2210 | 50 | 90 | 23 | 1.1 | 1.1 | 0.580 |
| NU2211 | 55 | 100 | 25 | 1.5 | 1.1 | 0.787 |
| NU2212 | 60 | 110 | 28 | 1.5 | 1.5 | 1.900 |
| NU2213 | 65 | 120 | 31 | 1.5 | 1.5 | 1.47 |
| NU2213 | 65 | 140 | 48 | 2.1 | 2.1 | 3.25 |
| NU2214 | 70 | 125 | 31 | 1.5 | 1.5 | 1.53 |
| NU2215 | 75 | 130 | 31 | 1.5 | 1.5 | 1.58 |
| NU2216 | 80 | 140 | 33 | 2.0 | 2.0 | 1.95 |
| NU2217 | 85 | 150 | 36 | 2.0 | 2.0 | 2.58 |
| NU2218 | 90 | 160 | 40 | 2.0 | 2.0 | 3.18 |
| NU2219 | 95 | 170 | 43 | 2.1 | 2.1 | 3.89 |
| NU2220 | 100 | 180 | 46 | 2.1 | 2.1 | 4.68 |
| NU2220 | 110 | 200 | 38 | 2.1 | 2.1 | 4.80 |
| NU2224 | 120 | 215 | 58 | 2.1 | 2.1 | 8.38 |
| NU2226 | 130 | 230 | 64 | 3.0 | 3.0 | 10.50 |
| NU224 | 120 | 215 | 40 | 2.1 | 2.1 | 5.75 |
| NU226 | 130 | 230 | 40 | 3.0 | 3.0 | 6.45 |
Cylindrical Roller Bearing Applications
1. Material handling machinery:mining machinery, textile machinery, lifting equipment, Agricultural machinery: tractors, harvesting machinery, etc.
2. Heavy-duty mining machinery: metallurgical machinery, mining machinery, lifting machinery, loading and unloading machinery, industrial vehicles, cement equipment, etc.
3. Construction Machinery: forklifts, earth moving machinery, compaction machinery, concrete machinery, etc.
4. The general petrochemical machinery: oil drilling machinery, oil refining machinery, chemical machinery, gas compressors, paper machinery, printing machinery, etc.
5. Machine tools: forging machinery, foundry machinery, woodworking machinery, etc.
6. Car: truck, road, bus, car, modified car, motorcycle ,etc.
